Alpha-Beta radiation detector performs the following functions: measurement of α and β radiation flux density, search for α and β radiation sources.
BDAB can be used by radiological and isotope tracing laboratories and customs officers, first responders, police, emergency teams.
| within range from 1.0 to 5∙105 min-1·cm-2 | ± (20 + А/φ) %, where А – coefficient equal to 10 min-1·cm-2; φ – measured density of α radiation flux |
| within range from 10,0 to 106 min-1·cm-2 | ± (20 + А/φ) %, where А – coefficient equal to 100 min-1·cm-2; φ – measured density of α radiation flux |
Operation Principle
A built-in detector based on the proportional counter is used to register α and β radiation flux density (DER, count rate). Data communication channel enables information exchange with Display and Control Unit PM1403 by RS-485 interface.
BDAB enables the user to set and constantly monitor the threshold level of α and β radiation fluxes through the whole measurement range and record the set threshold level of α and β radiation density values in the instrument’s non-volatile memory.
Operating Mode
When the instrument is connected to the Display and Control Unit РМ1403 / Display and Control Unit РМ1403-01 or PC it enables:
- measurement of α radiation flux density
- measurement of β radiation flux density
- search for α and β radiation sources
- program operation modes

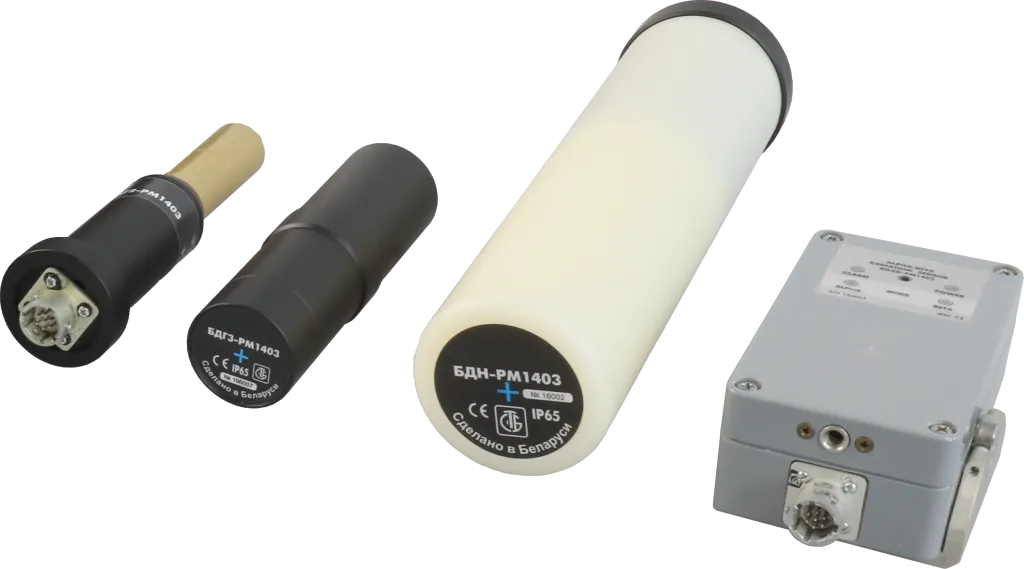

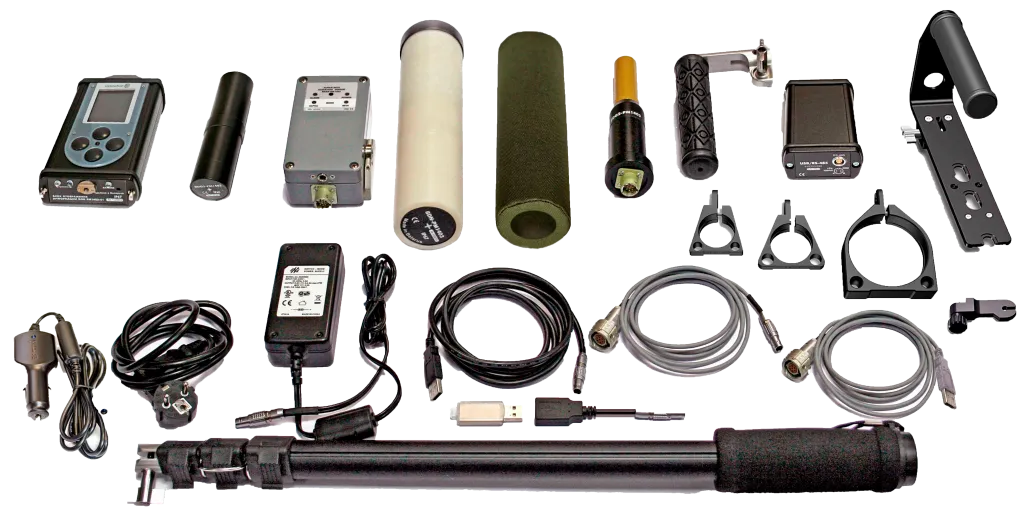

Radiation Detectors Set PM1403
BDG2 - GM detector, gamma radiation detector
BDG3 - Csl(Tl) detector, gamma radiation detector
BDN - He-3 detector, neutron radiation detector
BDAB - proportional counter, alpha-beta radiation detector
|
Detector
|
proportional counter | ||||
|
Energy range
|
15 KeV – 3.5 MeV (β particles) | ||||
|
α-radiation flux density measurement range
|
from 1.0 to 5∙105 min-1cm-2 | ||||
|
β-radiation flux density measurement range
|
from 10.0 to 106 min-1·cm-2 | ||||
|
α-radiation flux density accuracy
|
|
||||
|
β-radiation flux density accuracy
|
|
||||
|
Instrument sensitivity
|
|
||||
|
Sensitivity to α-radiation (for Pu-239)
|
not less than 3.0 impulses·см2 | ||||
|
Sensitivity to β-radiation
|
not less than 2.0 impulses·см<sup>2</sup> | ||||
|
Data transfer
|
RS-485 or USB interface | ||||
|
Dimensions
|
71х45х130 mm | ||||
|
Weight
|
0.45 kg | ||||
|
Ingress protection
|
IP64 | ||||
|
Drop test on concrete floor
|
0.7m | ||||
|
Mean recovery time
|
60 min | ||||
|
Mean service lifetime
|
10 years | ||||
|
Atmospheric pressure
|
from 84 to 106.7 kPa | ||||
|
Operating temperature
|
from -20 to +50 °С | ||||
|
Humidity
|
up to 95 % at 35 °С | ||||
|
Supply voltage
|
3.7 V (- 0.1; + 0.5) V |
