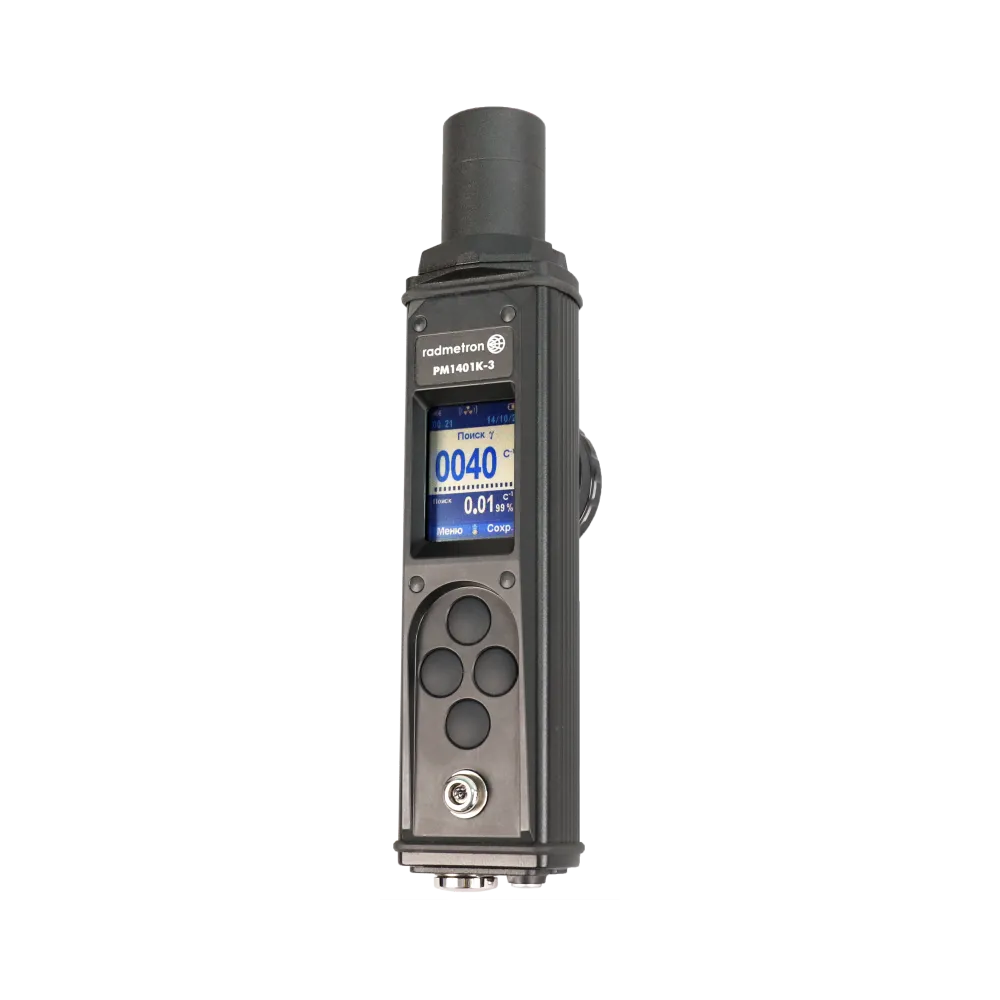

PM1401K-3 is the smallest and the most lightweight instrument in the world, which is capable to operate simultaneously as an alarming device, search instrument, survey meter, spectrometer and identifier.
The instrument can be used both indoors and outdoors and is intended for everyday and/or emergency use by officers of radiological and isotope laboratories, specialists of different industries, agriculture, transport, medicine, customs and border services, firefighters, military, police and other first responding agencies.
Operation Principle
Instrument performs continuous measurement of ambient dose equivalent rate of gamma and X-ray radiation in the wide energy range, monitors alpha, beta and neutron radiation, operates as spectrometer of gamma radiation and radioisotope identifier , and measures food/soil contamination with 137Cs radionuclide.
Instrument is equipped with built-in audible and visual alarms, GPS module, USB interface for PC communication. Non-volatile memory allows recording and storing up to 10 000 events. PM1401K-3 has compact size and lightweight, bright and color LCD, shockproof hermetic case and can be used in both indoor and outdoor environments.
Standard Delivery Set
- The PM1401K-3 instrument
- Protective case
- Set of spacer rings (for α-, β-radiation measurement)
- Set of α-radiation filters (for α-, β-radiation measurement)
- USB Power Cable (for PC-communication and recharging and rechargable batteries)
- AA-LR6 batteries (2 pcs.)
- Belt Clip
- Operation Manual and Software Guide (CD-ROM)
- Calibration and Warranty Certificates
Optional Accessories
- External vibrator with the wristband (for operation in noisy environment and/or performing a hidden search)
- Calibration cap (for energy calibration check and calibration)
- Telescopic extension pole (for operating the instrument in remote and hard-to-reach areas)
- Additional neutron moderator (increases the instrument sensitivity to neutron radiation)
- Tripod and set of Marinelli beakers (for measurement of the 137Cs activity in solid/food water)
- Carry pouch (for protection of the instrument)
|
Detector
|
Geiger-Mueller tube, CsI(Tl), He-3 |
|
Type of registered radiation
|
α, β, photon, neutron |
|
Energy range of β-radiation flux density measurement
|
150 keV - 3,5 MeV |
|
Energy range of the measures of neutron radiation
|
0.025 eV - 14 MeV |
|
Energy range of the measures of photon radiation
|
15 keV - 15 MeV |
|
Integral nonlinearity (INL) of spectrometer converstion characteristic
|
1 % |
|
Energy resolution when acquairing scintillation spectra by 0.662 MeV (137Cs) line, no more
|
9 % |
|
Quantity of accumulation channels
|
1024 |
|
Number of γ-radiation scintillation spectra saved in the instrument’s memory
|
at least 1000 |
|
Ambient dose equivalent rate (ADER) of photon radiation measurement range
|
0.1 μSv/h - 100 mSv/h |
|
α-radiation flux density measurement range
|
15 - 105 min-1⋅cm-2 |
|
β-radiation flux density measurement range
|
6 - 105 min-1⋅cm-2 |
|
137Cs activity concentrations measurement range
|
102 - 105 Bq/kg (Bq/l) |
|
Ambient dose equivalent rate (ADER) of photon radiation indication range
|
0.01 μSv/h - 200 mSv/h |
|
Accuracy of photon radiation ADER measurement
|
±(15+0.0015/H) %; where H - measured ADER in mSv/h |
|
α-radiation flux density accuracy
|
±(20 + 450/φα) % where φα - measured α-radiation flux density, min-1⋅cm-2 |
|
β-radiation flux density accuracy
|
±(20 + 60/φβ) % where φβ - measured β-radiation flux density, min-1⋅cm-2 |
|
Accuracy of 137Cs activity concentrations measurement
|
±(30 + 2000/A) % where А - measured activity concentrations, Bq/kg (Bq/l) |
|
Energy response relative to 0.662 MeV (137Cs)
|
±40 % for energy range 15 keV - 45 keV ±30 % for energy range 45 keV - 15 MeV |
|
Minimum detectable amounts of radioactive materials
|
gamma radiation sources at a distance of 0.2 m when moving at a speed of 0.5 m/s 133Ba - 55 kBq 137Cs - 100 kBq 60Co - 50 kBq standard sample of plutonium - 0,3 г standard sample of uranium - 10 г neutron radiation sources at a distance of 1 m when moving at a speed of 0.5 m/s 252Cf - 15 000 n/s standard sample of plutonium - 250 г |
|
Activity measurement sample density range
|
0,2 - 1,6 g/cm3 |
|
Alarm Type
|
Color LCD, audible, vibration (external) |
|
Radionuclide identification
|
yes |
|
PC communication
|
USB |
|
Positioning system
|
GPS |
|
Dimensions
|
262 x 60 x 65 mm |
|
Weight
|
no more than 0,82 kg |
|
Ingress protection
|
IP65 |
|
Drop test on concrete floor
|
0.7 m |
|
Maximum permissible gamma radiation influence within 5 min
|
1 Sv/h |
|
Mean recovery time
|
1 h |
|
Mean service lifetime
|
10 years |
|
Mean time between failyres, no less than
|
20 000 h |
|
Atmospheric pressure
|
from 84.0 to 106.7 kPa |
|
Operating temperature
|
-30 °С up to 50 °С |
|
Humidity
|
up to 95 % at 35 °С |
|
Power source
|
2 AA batteries |
|
Battery operating time, at least
|
300 h on condition: ADER up to 0,3 μSv/h, backlight usage up to 5 min/day, alarm duration up to 5 min/day |
|
Standards compliance
|
ANSI N42.33-2006, ANSI N42.34-2006, ANSI N42.42-2012, ANSI N42.48-2008, IEC 62327:2006 |
