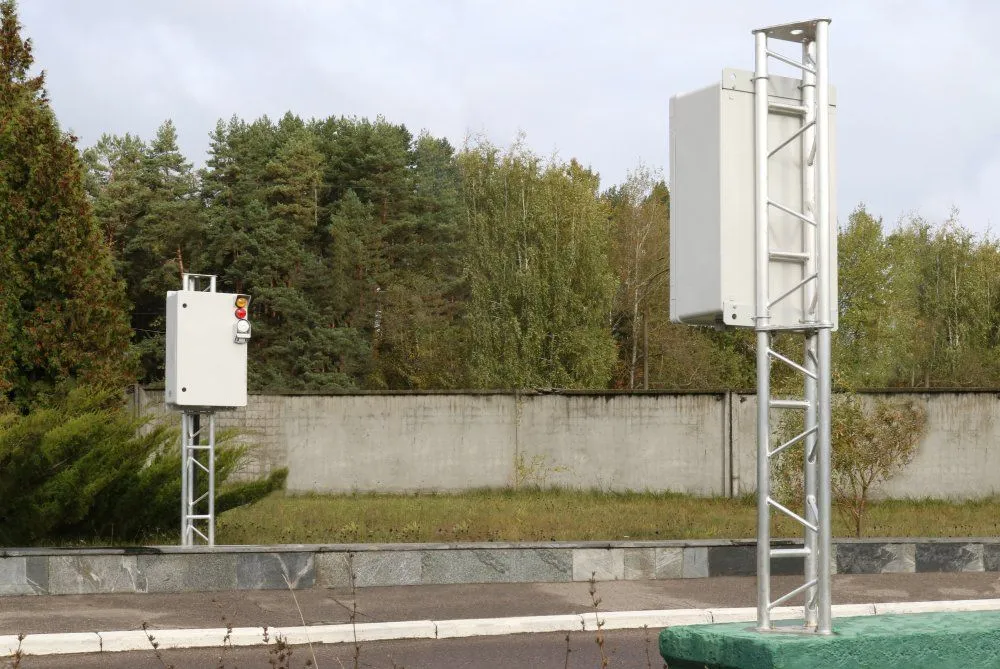

Radiation Portal Monitors PM5000KM series are highly sensitive fixed-installation systems designed to control transport, pedestrians, and luggage at stationary checkpoints for preventing illicit trafficking of radioactive materials.
at gamma radiation background 0,1 μSv/h
at source speed 5 km/h
133Ba - 40 kBq
137Cs - 50 kBq
60Co - 24 kBq
at gamma radiation background 0,1 μSv/h
at source speed 15 km/h
133Ba - 165 kBq
137Cs - 200 kBq
60Co - 95 kBq
Operation modes
Detection mode
Long-dwell scan mode
Dose equivalent rate measurement mode
Features
High sensitivity
Ease of installation
Audible and light alarms and an optional remote annunciator
Video surveillance (optional)
PC connection via Ethernet of WiFi
24/7 operation with the history recording
Suitable for use in harsh environment
Application
Border and customs checkpoints
Airports, seaports and railway stations
Nuclear waste disposal and storage sites
NPPs and nuclear industry enterprises
Petrochemical and metallurgical industry
Medical and research institutions
Governmental buildings, banks, postal terminals
Scrap metal industry
Mining industry
|
Energy range of the measures of photon radiation
|
60 keV - 3 MeV |
|
Ambient dose equivalent rate (ADER) of photon radiation measurement range
|
0.1 - 30 μSv/h (for energy 662 keV) |
|
Accuracy of photon radiation ADER measurement
|
±30 % |
|
False alarm rate
|
1/1000 |
|
Minimum detectable amounts of radioactive materials, control zone (L x H) 1.5 x 3 m
|
with 0.5 probability and at least 0.95 confidence probability at gamma radiation background 0,1 μSv/h at source speed 5 km/h 133Ba - 40 kBq 137Cs - 50 kBq 60Co - 24 kBq |
|
Minimum detectable amounts of radioactive materials, control zone (L x H) 3 x 3 m
|
with 0.5 probability and at least 0.95 confidence probability at gamma radiation background 0,1 μSv/h at source speed 15 km/h 133Ba - 165 kBq 137Cs - 200 kBq 60Co - 95 kBq |
|
Minimum detectable amounts of radioactive materials, control zone (L x H) 3 x 3.5 m
|
with 0.5 probability and at least 0.95 confidence probability at gamma radiation background 0,25 μSv/h when source is shielded with 1 mm of steel at source speed 10 km/h 133Ba - 340 kBq 137Cs - 410 kBq 60Co - 210 kBq in long-dwell scan mode 133Ba - 60 kBq 137Cs - 70 kBq 60Co - 35 kBq |
|
Minimum detectable amounts of radioactive materials, control zone (L x H) 6 x 3 m
|
with 0.5 probability and at least 0.95 confidence probability at gamma radiation background 0,1 μSv/h at source speed 15 km/h 133Ba - 315 kBq 137Cs - 390 kBq 60Co - 190 kBq in long-dwell scan mode 133Ba - 53 kBq 137Cs - 67 kBq 60Co - 32 kBq |
|
Number of detection units
|
2 |
|
PC communication
|
Ethernet, WiFi |
|
Ingress protection
|
IP65 |
|
Mean recovery time
|
no more then 60 min |
|
Mean service lifetime
|
15 years |
|
Mean time between failyres, no less than
|
20 000 h |
|
Atmospheric pressure
|
from 84 to 106.7 kPa |
|
Operating temperature
|
-30 up to +50 °C -50 up to +50 °C with heating module |
|
Humidity
|
98 % at +40 °С and lower temperature |
|
Power source
|
AC mains, built-in accumulator |
|
Supply voltage
|
90 - 132 V or 180 - 264 V, 47 - 63 Hz |
|
Power consumption
|
no more then 80 V⋅A (without video surveillance and heating) no more then 940 V⋅A (with video surveillance and heating) |
|
Battery Lifetime
|
3 h |
