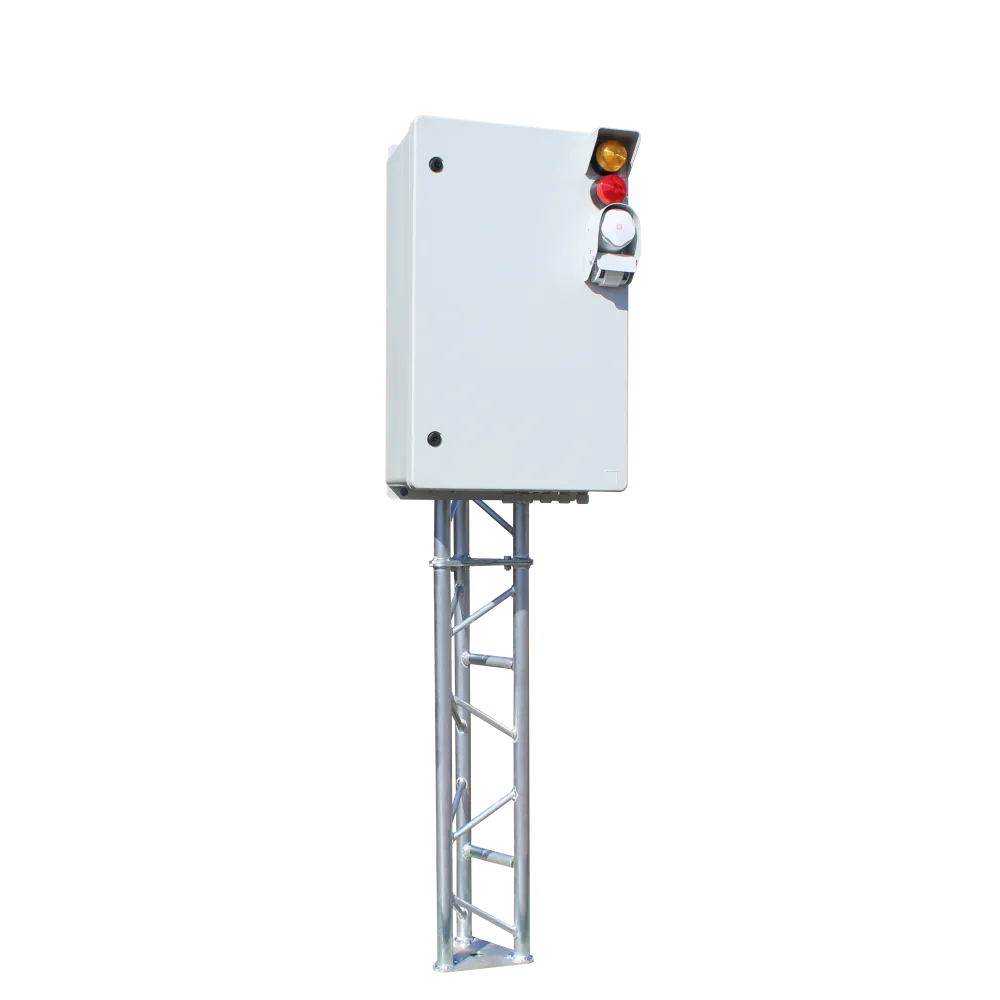

Установка радиационного контроля УРК-РМ5000КМ-01
New
Radiation Portal Monitors PM5000KM series are highly sensitive fixed-installation systems designed to control transport and luggage at stationary checkpoints for preventing illicit trafficking of radioactive materials.
Details
Characteristics
Energy range of the measures of photon radiation
—
60 keV - 3 MeV
Ambient dose equivalent rate (ADER) of photon radiation measurement range
—
0.1 - 30 μSv/h (for energy 662 keV)
Accuracy of photon radiation ADER measurement
—
±30 %
False alarm rate
—
1/1000
Minimum detectable amounts of radioactive materials, control zone (L x H) 1.5 x 3 m
—
with 0.5 probability and at least 0.95 confidence probability
at gamma radiation background 0,1 μSv/h
at source speed 5 km/h
133Ba - 135 kBq
137Cs - 150 kBq
60Co - 78 kBq
at gamma radiation background 0,1 μSv/h
at source speed 5 km/h
133Ba - 135 kBq
137Cs - 150 kBq
60Co - 78 kBq
Minimum detectable amounts of radioactive materials, control zone (L x H) 3 x 3 m
—
with 0.5 probability and at least 0.95 confidence probability
at gamma radiation background 0,1 μSv/h
at source speed 15 km/h
133Ba - 610 kBq
137Cs - 670 kBq
60Co - 350 kBq
at gamma radiation background 0,1 μSv/h
at source speed 15 km/h
133Ba - 610 kBq
137Cs - 670 kBq
60Co - 350 kBq
Установка радиационного контроля УРК-РМ5000КМ-01
Operation modes
- detection mode
- long-dwell scan mode
- dose equivalent rate measurement mode
Features
- high sensitivity
- ease of installation
- audible and light alarms and an optional remote annunciator
- video surveillance (optional)
- PC connection via Ethernet of WiFi
- 24/7 operation with the history recording
- suitable for use in harsh environment
Application
- mining, petrochemical and metallurgical industry
- industrial and cargo stationary customs checkpoints
- scrap metal industry
- radioactive waste disposal and storage sites
- NPPs and nuclear industry enterprises
Characteristics
|
Energy range of the measures of photon radiation
|
60 keV - 3 MeV |
|
Ambient dose equivalent rate (ADER) of photon radiation measurement range
|
0.1 - 30 μSv/h (for energy 662 keV) |
|
Accuracy of photon radiation ADER measurement
|
±30 % |
|
False alarm rate
|
1/1000 |
|
Minimum detectable amounts of radioactive materials, control zone (L x H) 1.5 x 3 m
|
with 0.5 probability and at least 0.95 confidence probability at gamma radiation background 0,1 μSv/h at source speed 5 km/h 133Ba - 135 kBq 137Cs - 150 kBq 60Co - 78 kBq |
|
Minimum detectable amounts of radioactive materials, control zone (L x H) 3 x 3 m
|
with 0.5 probability and at least 0.95 confidence probability at gamma radiation background 0,1 μSv/h at source speed 15 km/h 133Ba - 610 kBq 137Cs - 670 kBq 60Co - 350 kBq |
|
Minimum detectable amounts of radioactive materials, control zone (L x H) 3 x 3.5 m
|
with 0.5 probability and at least 0.95 confidence probability at gamma radiation background 0,25 μSv/h when source is shielded with 1 mm of steel at source speed 10 km/h 133Ba - 1060 kBq 137Cs - 1170 kBq 60Co - 610 kBq in long-dwell scan mode 133Ba - 185 kBq 137Cs - 205 kBq 60Co - 105 kBq |
|
Minimum detectable amounts of radioactive materials, control zone (L x H) 6 x 3 m
|
with 0.5 probability and at least 0.95 confidence probability at gamma radiation background 0,1 μSv/h at source speed 15 km/h 133Ba - 1350 kBq 137Cs - 1470 kBq 60Co - 760 kBq in long-dwell scan mode 133Ba - 230 kBq 137Cs - 250 kBq 60Co - 135 kBq |
|
Number of detection units
|
1 |
|
PC communication
|
Ethernet, WiFi |
|
Ingress protection
|
IP65 |
|
Mean recovery time
|
no more then 60 min |
|
Mean service lifetime
|
15 years |
|
Mean time between failyres, no less than
|
20 000 h |
|
Atmospheric pressure
|
from 84 to 106.7 kPa |
|
Operating temperature
|
-30 up to +50 °C -50 up to +50 °C with heating module |
|
Humidity
|
98 % at +40 °С and lower temperature |
|
Power source
|
AC mains, built-in accumulator |
|
Supply voltage
|
90 - 132 V or 180 - 264 V, 47 - 63 Hz |
|
Power consumption
|
no more then 60 V⋅A (without video surveillance and heating) no more then 520 V⋅A (with video surveillance and heating) |
|
Battery Lifetime
|
6 h |
